PicoScope Automotive Oscilloscopes & Accessories

How often does a problem present itself that is almost impossible to solve? Replace this component, then that; try this and then that; and all the while your customer becomes more irate! A PicoScope automotive oscilloscope will open your eyes to problems that are invisible when using conventional techniques.

If you are new to scopes, then have a look at our Introduction.

A 2-minute introduction to PicoScope Automotive

PicoScope is a high-end Automotive Oscilloscope and Diagnostic System designed to make your task easier by solving those elusive vehicle problems quickly and efficiently. When fault codes aren't enough, our award-winning, automotive oscilloscopes will help you to save time and money. Our scopes work with any motorbike, car or truck and make fault-finding faster.

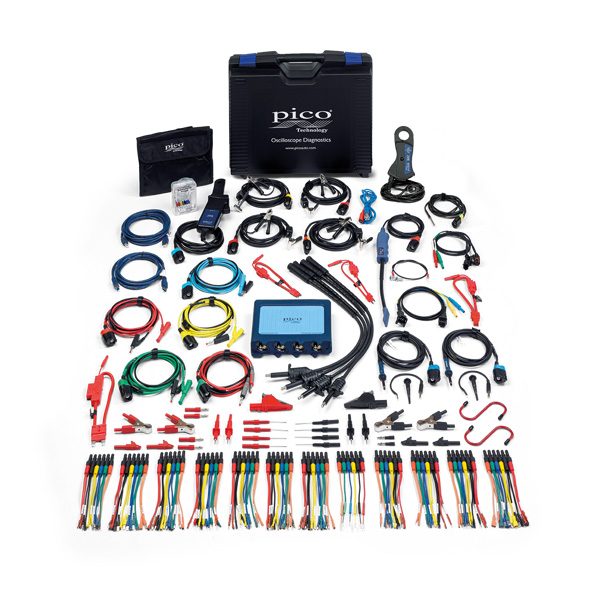

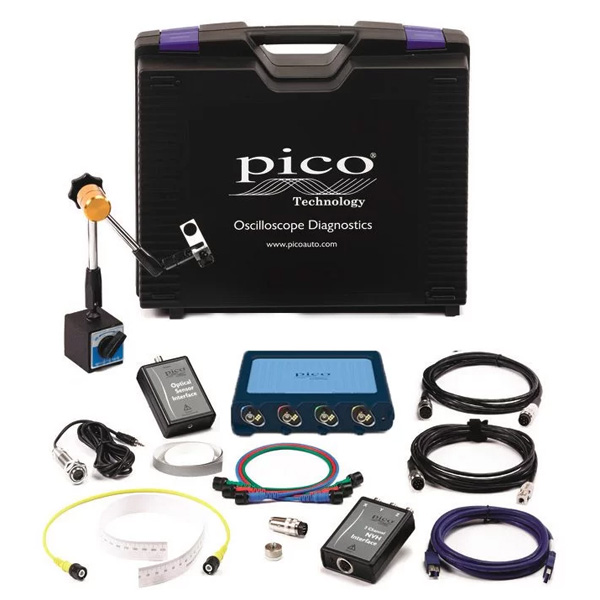

PicoScope Automotive Oscilloscope and Diagnostic

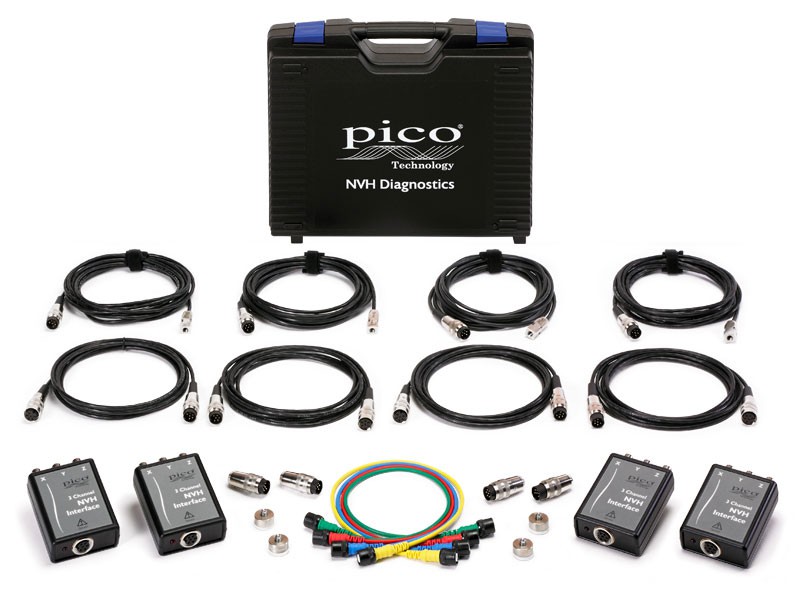

NVH Advanced Diagnostic Kit

Multiple Measurements

- Voltage

- Current

- Pressure

- Noise and Vibration

Vertical Resolution

- 12-bit oscilloscope

- 16x better than 8 bits

- Graphical waveform is cleaner and more accurate

Floating Inputs

- Each input is separate from the other channels

- Independent Grounds across the channels

- Ground voltage differences between channels - up to 30V

Buffer Memory and Waveform Buffer

- Record up to 250 million samples

- Zoom in for minute detail

- Waveform buffer allows for searches through previous waveforms

Bandwidth and Maximum Sampling Rate

- Bandwidth - 20 million cycles per second

- Up to 400 million samples per second

- See events that other scopes simply ignore

Multiple Measurements

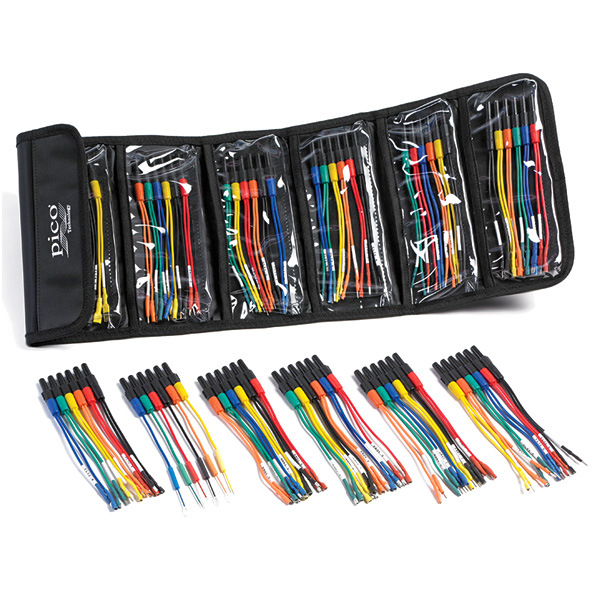

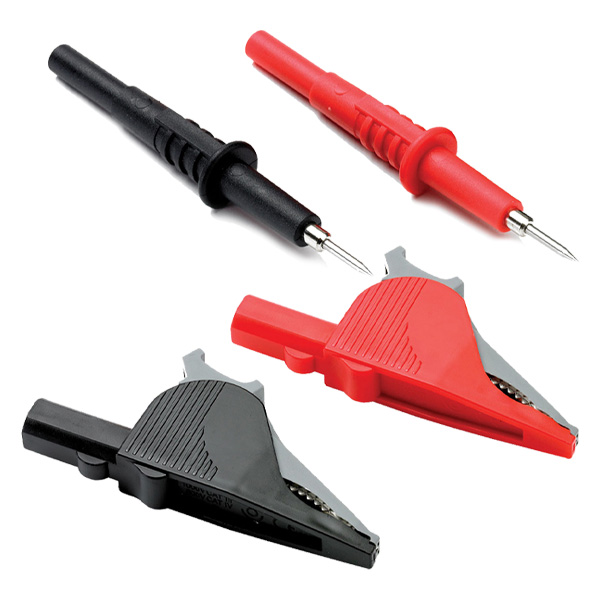

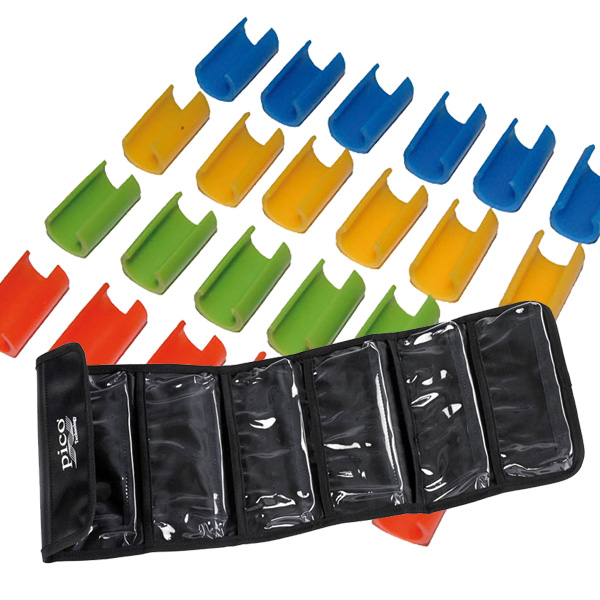

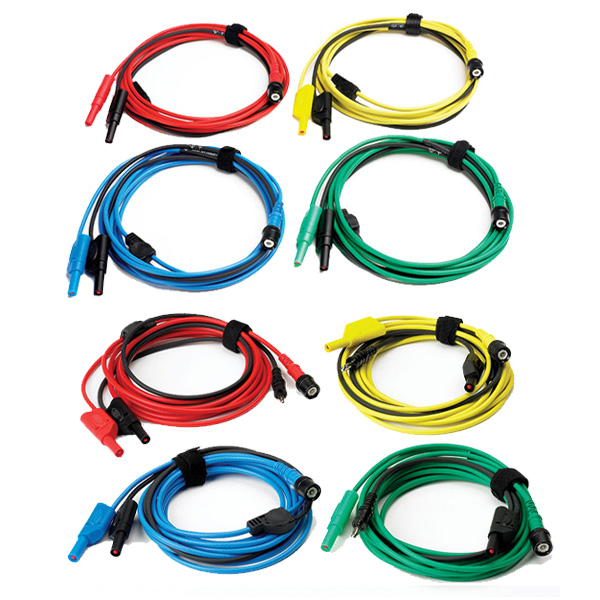

PicoScopes are supplied in kits that are designed to suit you budget and which can be extended as you need further functionality. We have a wide range of high quality components, sensors and accessories that have been developed for longevity and can withstand harsh environments such as the engine compartment of a vehicle.

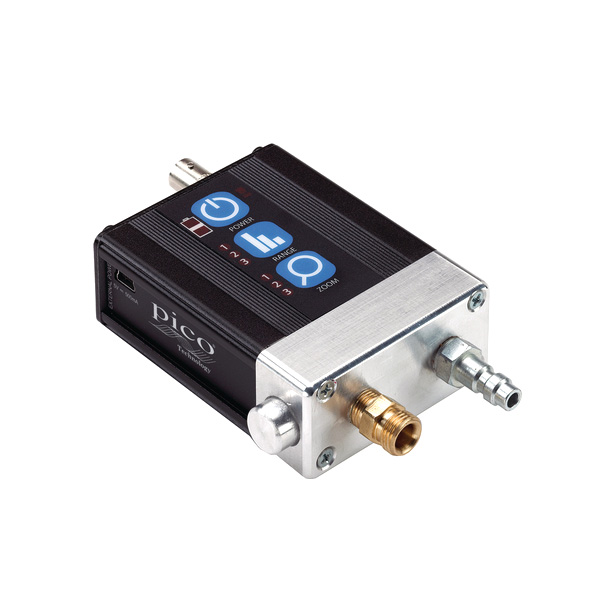

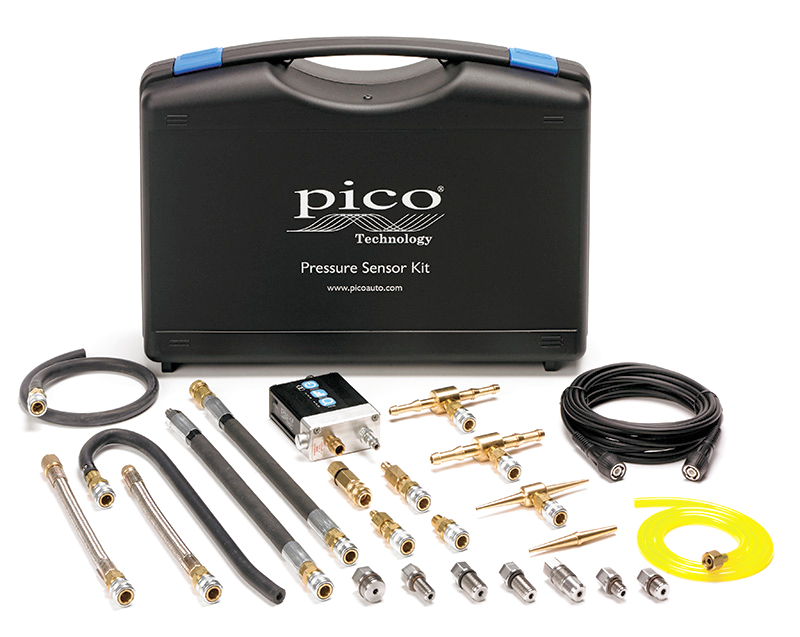

Maxi Pressure Kit
