Breakout Connector Leads and Kits

Breakout Leads & Boxs

Breakout connector leads provide quick, easy access to sensor signals and actuator voltages and currents. Simply connect the breakout lead into the existing cable loom, and then take the output signal from the 4 mm banana plugs into the automotive oscilloscope via one of the PicoBNC+™ Test Leads. Our breakout leads also give you access to individual wires to allow probing with a current clamp.

Pin 1	Green
Pin 2	Red
Pin 3	Blue
Pin 4	Yellow
Pin 5	White
Pin 6	Black

Please note that it may be possible to cause a short circuit to the oscilloscope if incorrect connections are made. Check your connections carefully or damage might result which will require repairs to be made at your own cost.

Always refer to wiring diagrams to identify signals. To help you to identify signals, our breakout leads are now generally manufactured using the colours in the table on the left, regardless of the number of connections.

Please Note Some of the images of the breakout leads on this page show incorrect colours (e.g. black and red instead of green and red). These are the old versions of the leads and the images will be updated shortly.

Connector Breakout Lead Kit B PICO-PQ030	Connector Breakout Lead Kit A PICO-PP968

This kit includes Pico connector breakout leads for four of the more common connectors used on VW, AUDI and other manufcturers' engines. This kit contains: - TA190 2-pin ACS Connector Breakout Lead - TA191 3-pin Kostal Connector Breakout Lead - TA194 2-pin Kostal Connector Breakout Lead - TA267 3-pin AMP Superseal Connector Breakout Lead	This breakout lead kit lets you take voltage readings from the multipin sensors and actuators in the engine compartment. This kit contains: - TA190 2-pin ACS Connector Breakout Lead - TA191 3-pin Kostal Connector Breakout Lead - TA192 2-pin Deutsch DTXX-2 Connector Breakout Lead - TA193 4-pin Deutsch DTXX-4 Connector Breakout Lead - TA194 2-pin Kostal Connector Breakout Lead

Connector Breakout Lead Kit B
PICO-PQ030

Connector Breakout Lead Kit A
PICO-PP968

This kit includes Pico connector breakout leads for four of the more common connectors used on VW, AUDI and other manufcturers' engines.

This kit contains:

- TA190 2-pin ACS Connector Breakout Lead

- TA191 3-pin Kostal Connector Breakout Lead

- TA194 2-pin Kostal Connector Breakout Lead

- TA267 3-pin AMP Superseal Connector Breakout Lead

This breakout lead kit lets you take voltage readings from the multipin sensors and actuators in the engine compartment.

This kit contains:

- TA190 2-pin ACS Connector Breakout Lead

- TA191 3-pin Kostal Connector Breakout Lead

- TA192 2-pin Deutsch DTXX-2 Connector Breakout Lead

- TA193 4-pin Deutsch DTXX-4 Connector Breakout Lead

- TA194 2-pin Kostal Connector Breakout Lead

Breakout Connector Cables

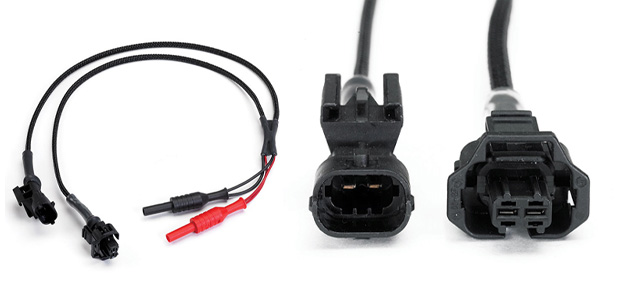

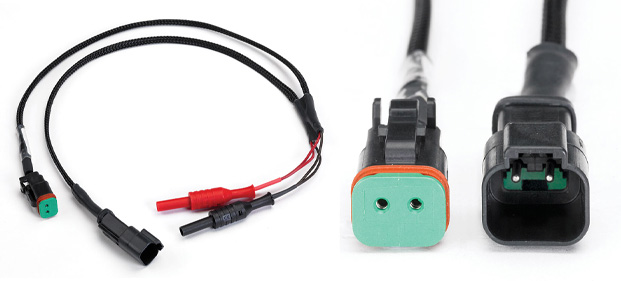

2-pin ACS Connector Breakout Lead PICO-TA190	2-pin Deutsch DTXX-2 Connector Breakout Lead PICO-TA192

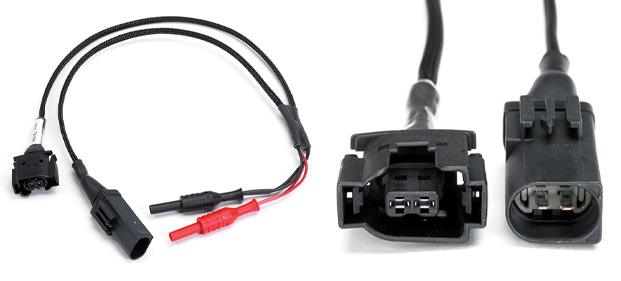

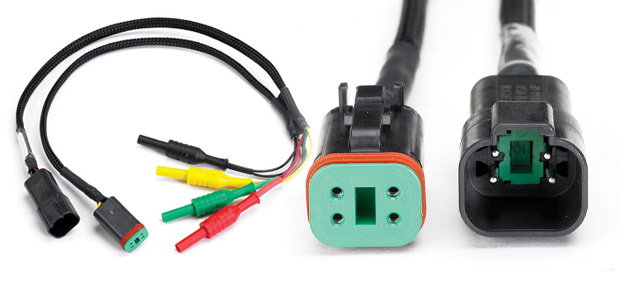

2-pin Kostal Connector Breakout Lead PICO-TA194	4-pin Deutsch DTXX-4 Connector Breakout Lead PICO-TA193

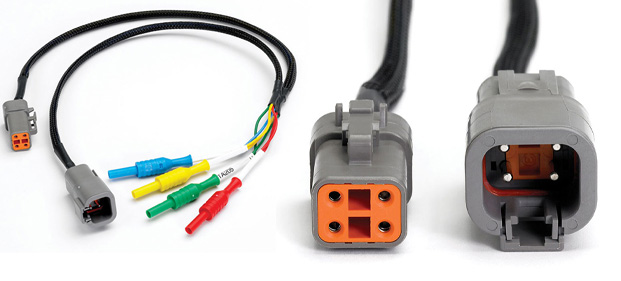

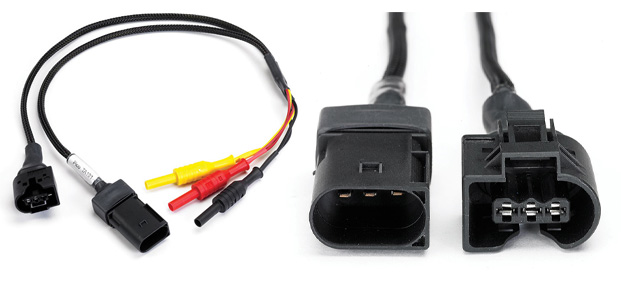

3-pin Kostal Connector Breakout Lead PICO-TA191	4-pin large Deutsch DTPXX-4 Connector Breakout Lead PICO-TA205
